FD-7 WIDE

• The FD-7 WIDE is the biggest folding pedal in MKS history.

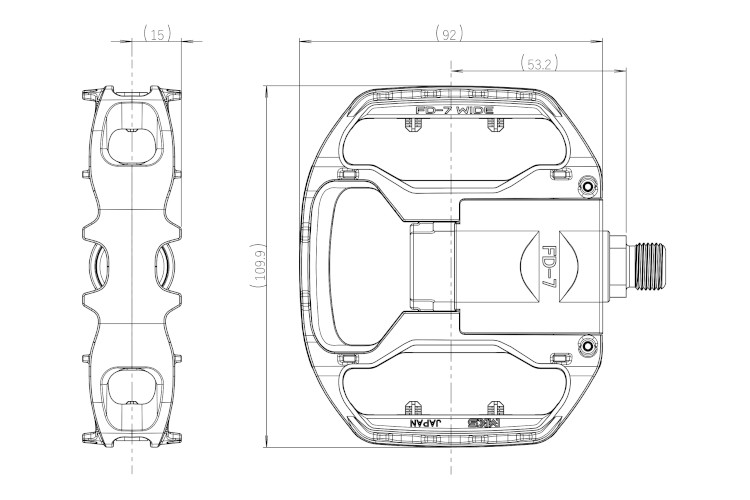

• It uses the folding mechanism of the FD-7, but extends the tread length to 109.7 mm.

• The protrusions on the outer and inner sides of the pedal body provide good grip even when riding on rough surfaces or in the rain.

• The robustness has already been proven by the FD-7 and these long-lasting pedals are the perfect upgrade for your folding bike.

• To fold the pedals:

1. Push the button in the center of pedal body.
2. Pull or push the pedal body in the direction of your choosing.

• To unfold the pedals:

1. Push the cage up until you hear a satisfying click.

©MKS

©MKS

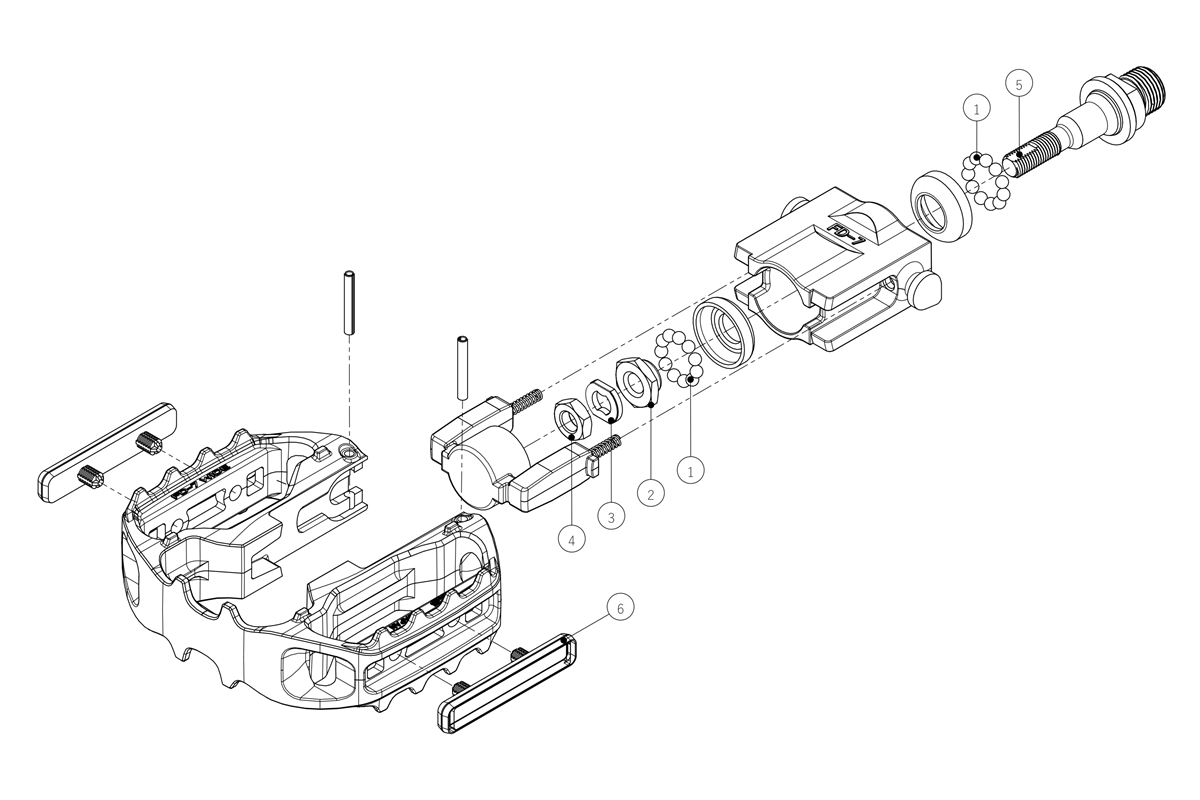

①5/32" Carbon Steel Balls, 44pcs CC001
②Pedal Cone for 5/32", 1pc CC003
　Pedal Cone for 5/32" (L), 1pc CC004
③
④M8 Locknut for 5/32", 1pc CC006
　M8 Locknut for 5/32" (L), 1pc CC007
⑤Spindle FD-7 (L), 1pc SP009
　Spindle FD-7 (R), 1pc SP010
⑥
