FD-7

Strong Folding Pedal with a solid feel

The FD-7 is a strong, alloy pedal that uses a single action for quick and easy folding. Ideal for folding bikes such as Brompton, Tern, and Dahon the FD-7 will keep you moving quickly both on and off of the bike. Featuring integrated reflectors and a semi-aggressive tooth pattern this pedal works as a great city pedal.

To fold the pedals:
1. Push the button in the center of petal body
2. Pull or push the pedal body in the direction of your choosing
To Unfold the pedals:
1. Push the cage down until you hear a satisfying click.

©MKS

©MKS

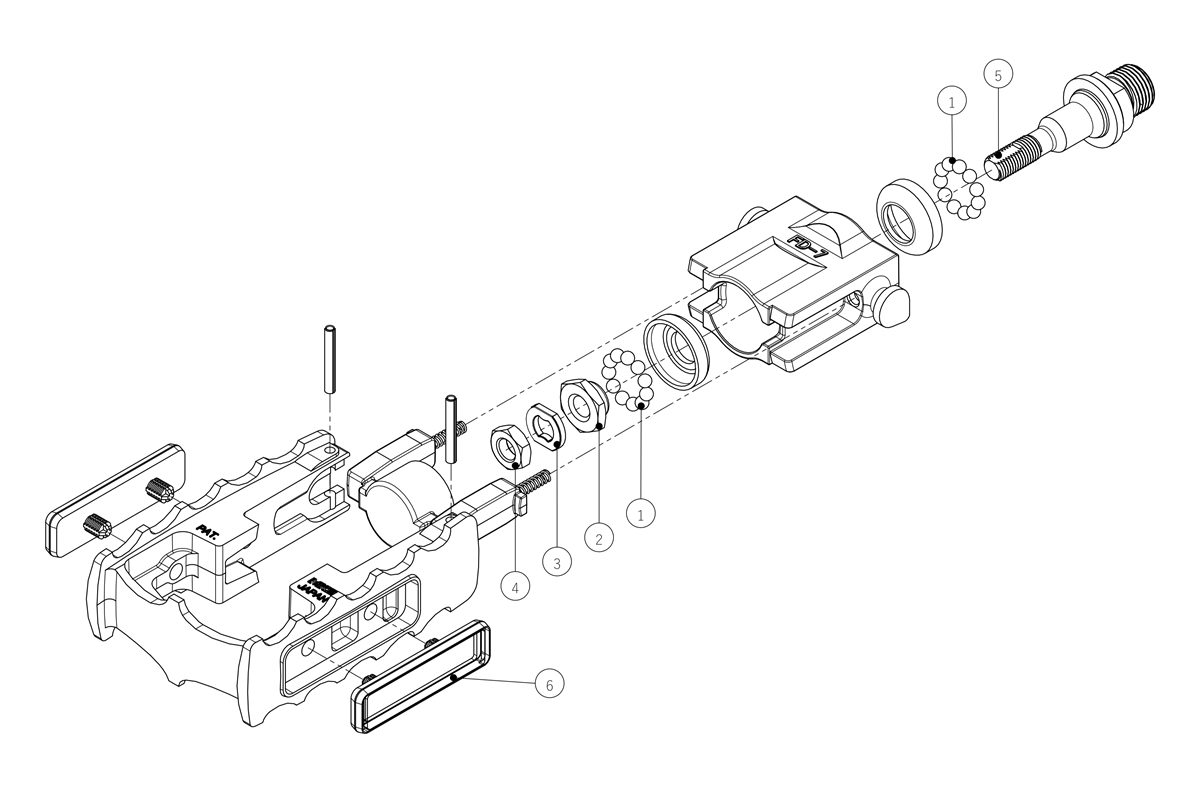

①5/32" Carbon Steel Balls, 44pcs CC001
②Pedal Cone for 5/32", 1pc CC003
　Pedal Cone for 5/32" (L), 1pc CC004
③Keyed Washer for 5/32", 1pc CC005
④M8 Locknut for 5/32", 1pc CC006
　M8 Locknut for 5/32" (L), 1pc CC007
⑤Spindle FD-7 (L), 1pc SP009
　Spindle FD-7 (R), 1pc SP010
⑥
